About Mares XR Complete Mount System with 3mm Aluminum Back-Plate

Mares introduces its Extended Range (XR) Gear Line. Bridging the gap between recreational and technical diving. The XR Harness Heavy Light is part of this new line and is made for the serious diver looking for a technical harness made from durable and long-lasting components. The harness consists of webbing with 138" (350cm) webbing with center hole and grommet, 3 x 1.6" (40mm) elastic loop retainers and a 59" (150cm) crotch strap. The harness hardware provided are 2 x bent D-ring 2" (50mm), 2 x straight D-ring 2" (50mm), 4 x 3-bar slides normal with Mares logo, 2 x 3-bar slides toothed with Mares logo, 1 x waist buckle with Mares logo crotch strap, 2 x straight D-rings 2" (50mm) and 1 x 3-bar glides 2" (50mm) with Mares logo. All hardware on this DIR Hogarthian configuration harness are made from corrosion resistant lightweight black anodized aluminum.

The Back-Plate is made from 0.12" (3mm) 6061 marine grade anodized aluminum alloy, this back-plate is strong, durable and provides many options for fixing on accessories - all with the modern XR look! Back-plate has 13-laser cut and laser etched webbing slots, with 8 slots specially designed for optimum positioning of the harness webbing. 2 upper and 2 lower slots for nylon cylinder bands so a single cylinder can be strapped directly to the back-plate without the requirement of a special adapter. Having only 2 slots provides enough lateral cylinder stability without weakening the strength of the spine.

Back-plate has 2" (50mm) wide crotch strap slot and 15 holes for attachment of accessories. The 3 holes at the top of the plate offer a range of height adjustments for buoyancy cells and cylinders. In addition, a corresponding lower center slot allows for lower band bolts that are misaligned. 4 upper and lower perimeter holes along either side and 4 holes along the bottom allow for the mounting of accessories and side-mount butt plate. Bended lower edges, Mares XR logos and laser cut shaped axis, highly technical pre-shape for unparalleled versatility. The back-plate has an ultra-rugged unfold-able backbone and the design was pushed to limits through intense testing. The Mares XR Aluminum Back-Plate provides total modularity: Fits all Mares donuts/wings.

Mares XR Complete Mount System with 3mm Aluminum Back-Plate Features

• Mares XR Complete Mount System with 3mm Aluminum Back-Plate:

• Mares Introduces the Extended Range (XR)

• Bridging the Gap Between Recreational & Technical Diving

• Made for Serious Divers

• Pushed to Limits-Thru-Intense Testing

• Total Modularity: Fits All Mares Donuts/Wings

• Mares XR Harness Heavy Light:

• Technical Diving Harness Assembly

• Harness Webbing:
  138" (350cm) Continuous Webbing
  Center Hole & Grommet
  3 x 1.6" (40mm) Elastic Loop Retainers
  59" (150cm) Crotch Strap

• Harness Hardware:
  Harness Hardware:
  Corrosion Resistant Stainless Steel
  2 x Bent D-Ring 2" (50mm)
  2 x Straight D-Ring 2" (50mm)
  4 x 3-Bar Slides Normal w/Mares Logo
  2 x 3-Bar Slides Toothed w/Mares Logo
  1 x Waist Buckle w/Mares Logo
  Cotch Strap:
  2 x Straight D-Rings 2" (50mm)
  1 x 3-Bar Glides 2" (50mm)

• DIR Hogarthian Configuration Harness

• Mares XR Aluminum Back-Plate:

• 0.12" (3mm) 6061 Marine Grade Anodized Aluminum Alloy

• 13 Laser Cut and Laser Etched Webbing Slots

• Eight Slots Specially Designed for Optimum Positioning of Harness Webbing

• 2 Upper, 2 Lower Slots for Nylon Cylinder Bands, Single Cylinder Mount w/o Adapter

• Two Slot Design: Provides Lateral Cylinder Stability w/o Weakening Strength of Spine

• 2" (50mm) Wide Crotch Strap Slot

• 15 Holes for Accessory Attachment

• Three Top Holes: Offer Range of Height Adjustments for Buoyancy Cells/Cylinders

• Lower Center Slot: Allows for Misaligned Lower Band Bolts

• 4 Upper, Lower & Bottom Perimeter Holes:
  Mounting of Accessories
  Side-Mount Butt Plate

• Bended Lower Edges

• Mares XR Logos and Laser Cut Shaped Axis

• Highly Technical Pre-Shape - Unparalleled Versatility

• Ultra-Rugged Unfold-Able Backbone

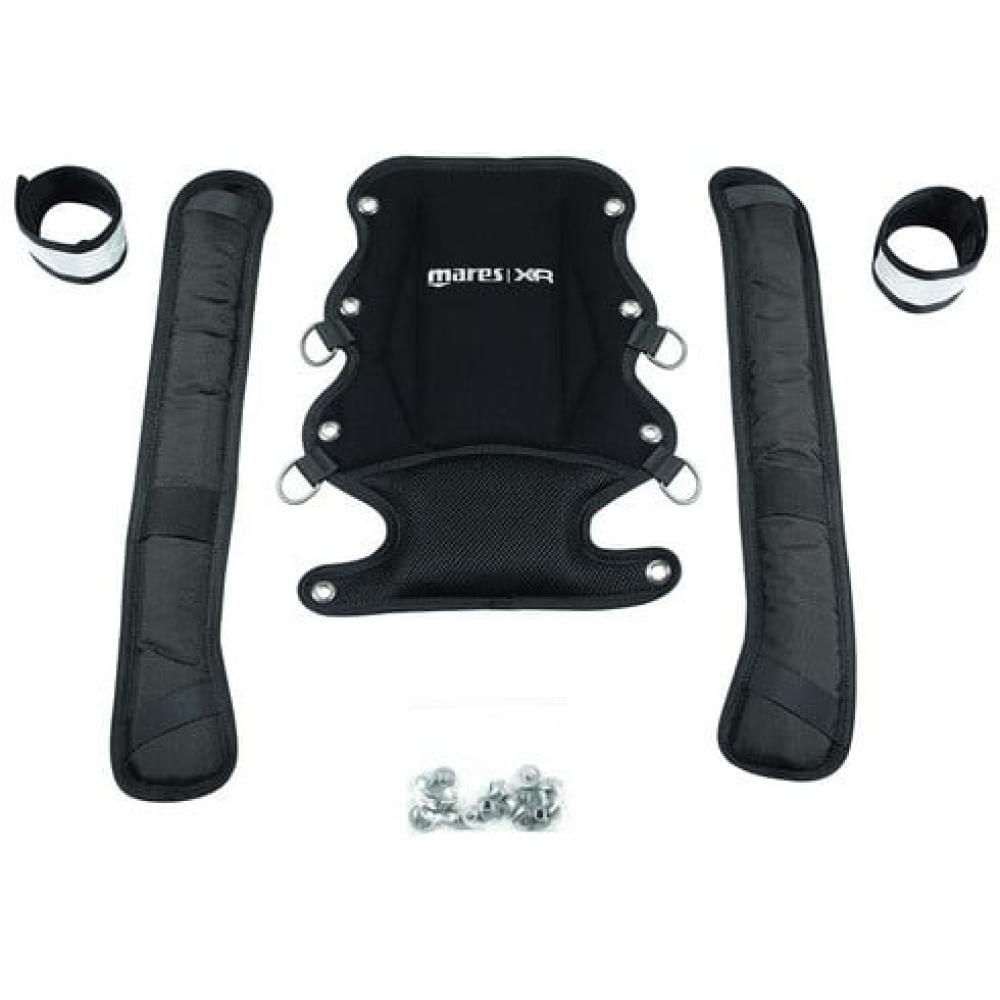

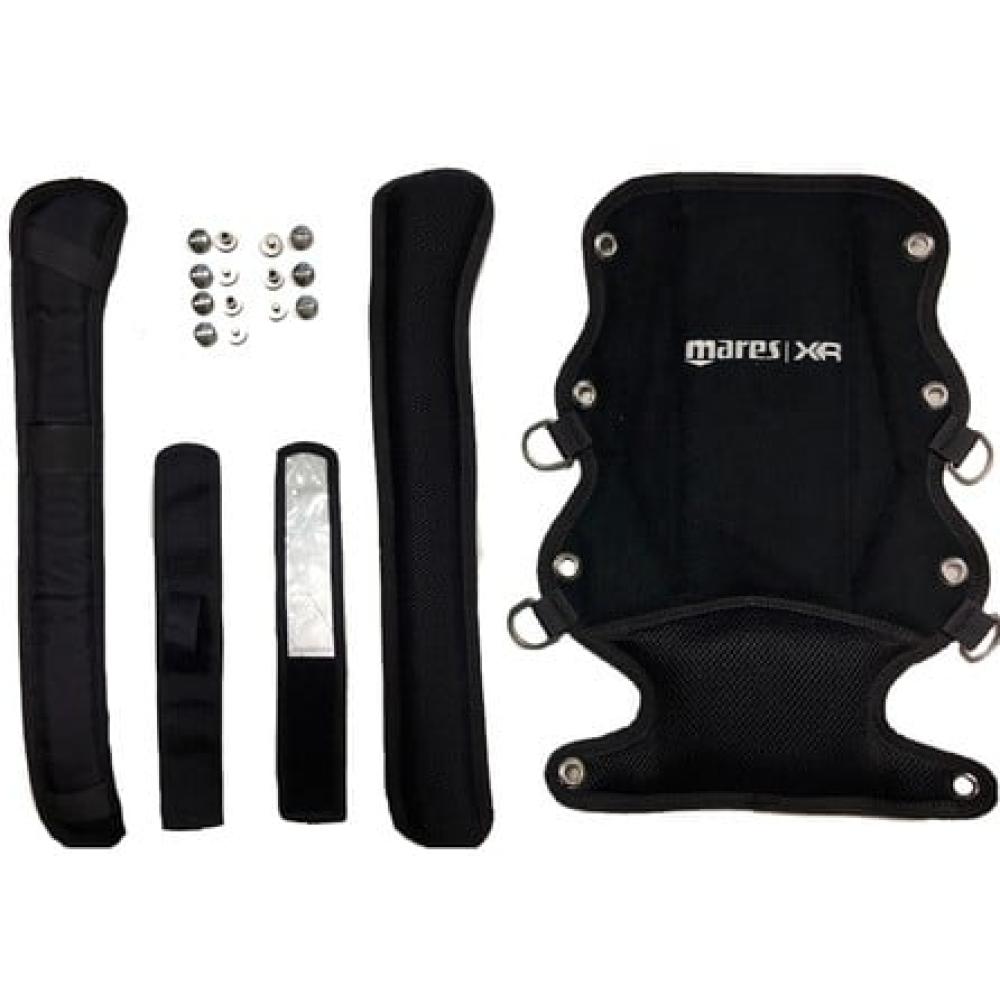

Product description Mares Deluxe Padding Back & Shoulders -Xr Line

The ultimate in comfort and convenience.

Adjustable shoulder pads
Movable velcro tabs for a custom fit around shoulder, d-ring and harness accessories
Integrated storage compartment to carry lift devices
Ultimate in comfort and convenience without sacrificing any features
Shoulder mounted d-rings can easily be moved to the desired location without affecting the shoulder pad

Description

Divers who have entered the XR world and decided to switch to a double tank will only have to buy this donut. Its circular shape allows air to circulate easily and have the technical diver direct it towards the valves. According to your teaching guidelines, this bag offers you the option of placing the drain valve on the left or right.

The key features of the Donut Bladder Twin Tank are:

• Drains: 6 large grommets, 2 on the top and 4 on the bottom
• 1000D Cordura and 600D polyester exterior
• A heavy-duty plastic zipper and slider with elongated teeth
• 4 heavy-duty grommets positioned to allow optimum trim
• A stretchy, low profile, oval corrugated hose
• A K-style inflator with metal buttons
• The mid position of the inflator does not interfere with the 1st stage
• A right and left modular low profile dump valve and blinder
• Extremely streamlined - very stable continuous loop shape
