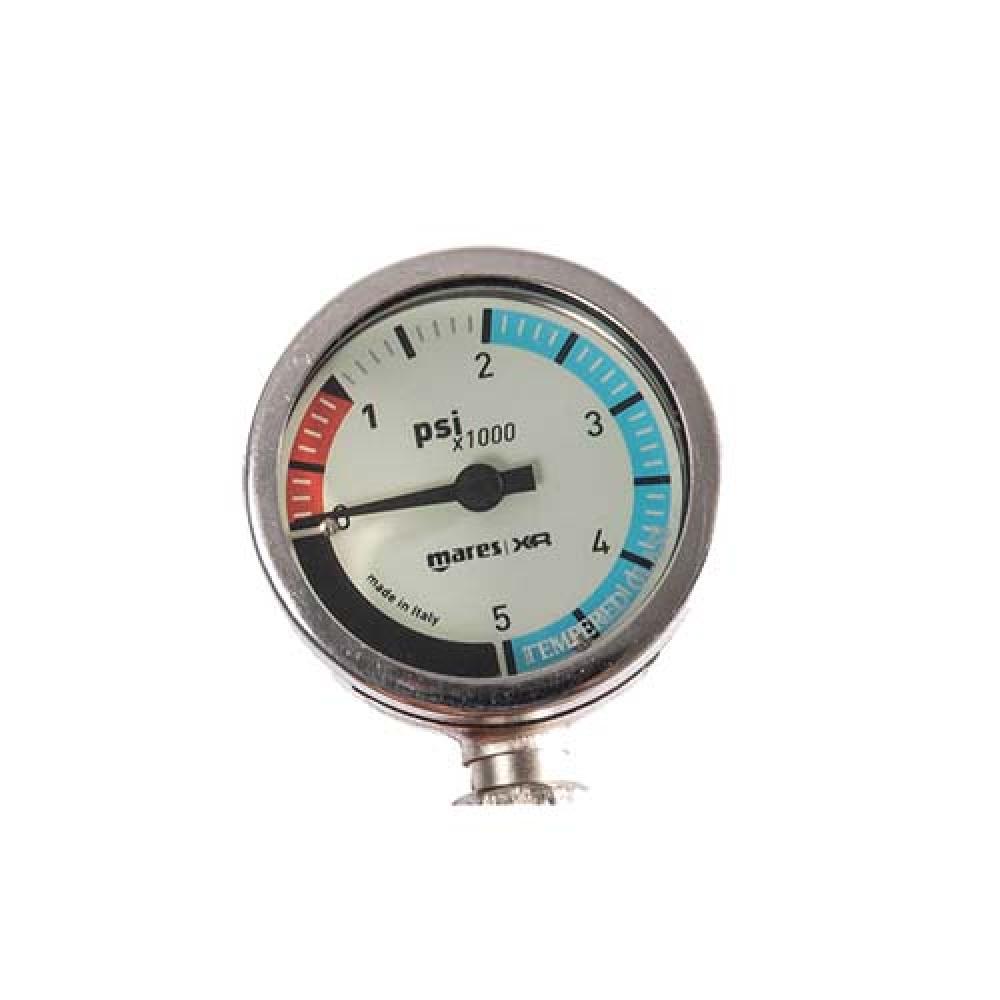

The Mares XR Pressure Gauge is part of Mares' new line the XR (Extended Range). The Mares XR Pressure Gauge is brass 2in/52mm pressure gauge that is double chrome mirror plated and tempered glass lens. The luminescent glow in the dark screen makes it easy to see in all environments. With the Copper beryllium bourdon tube mechanism that never goes out of calibration even with hard knocks for the greatest degree of accuracy and reliability. The Mares XR Pressure Gauge is the preferred gauge for its simplicity by many technical divers who follow DIR training philosophy. Designed for technical divers and top quality regulator systems gauge is air or 100% Oxygen (oxy clean) compatible and is certified according to EN 250 requirements. The Mares XR Pressure Gauge is available in imperial (feet) or metric (bars) units of measure and comes with a durable 6" (15.25 cm) Miflex 7/16" threaded high pressure hose. The Mares XR Pressure Gauge measures 2" (52mm) in diameter and weighs 7.4 oz. (210 g). The gauge face is color coded for ease of reading at a glance. The imperial version has a red background from 0 to 1,000 psi white background from 1,000 to 2,000 psi and blue from 2,000 to 5,000 psi. The metric version has a red background from 0 to 50 bars, white background from 50 to 200 bars and blue background from 200 to 360 bars.





Mares XR Pressure Gauge Special Features:

SPG with graduation range 0-360 bar, 0-5000 psi

Single reading

Tempered glass

Luminescent "glow in the dark” screen

56cm rubber hose or 15 cm milflex carbon/titanium black hose

Air or 100% Oxy (oxy clean)

Certified according to EN 250

Designed for technical divers and top quality regs

Double chrome, mirror-plated case treatment: assures the best look and maximum protection against corrosion

Brass housing with tempered glass for extreme durability + chance to use with no cover protection due to double welding

Copper beryllium bourdon tube mechanism that never goes out of calibration even with hard knocks

Greatest degree of accuracy and reliability

Preferred for its simplicity by many technical divers who follow DIR training philosophy

Offered in a total of 6 options to fit all technical requirements





Mares XR Pressure Gauge Technical Specifications:

Code - 414600

Weight - 210g / 7.4oz - Diameter 52mm / 2"
